Description
Compatible Models
D3K/D4C/D4D/D4G/D4K/D5K/D5H/D5M/D5N/D5H/D6D/D6M/D6N/D6H/D6M/D6N/D6K/D6R//D7G/D7F/D7H/D7R/D8R/D8K/D8N/D9N/D9G/D9R/304E/305/306E2/307D/308D/312D2/313D/314D/315D/318D2/320B/320C/320D/320D2/320NGH/322BL/323D/325C/325D/326D2/329D/330B/330C/330D/336D/336D2/345D/349D/365C/374FL/390DL/390FL/416B/416D/416E/ 416F/428C/428E/428F/CS533E/CS533D/CS563C/CS533D/CB14B/CW34/CB7/AP655F/AP355F/AP655D/120H/120G/140H/ 140K/140G/14M3/16G/16M3/740B/773E/777D/773D/772G/740B/773B/935/938F/966C/966H/950F/950GC/980C/990H/992G

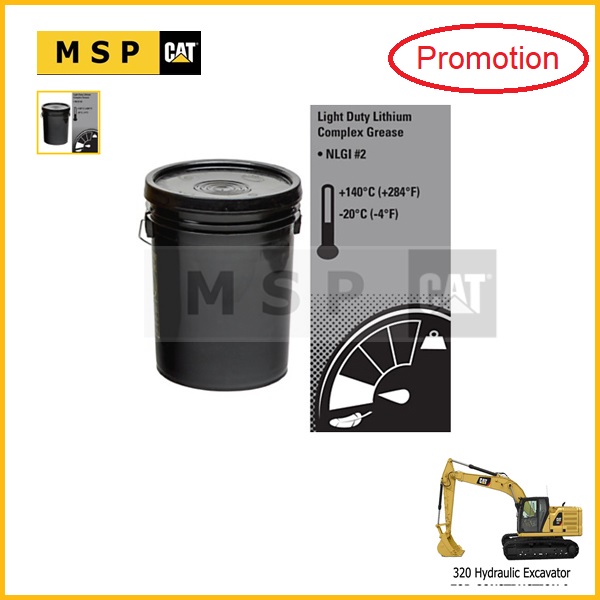

| Typical Properties | |
| NLGI | 2 |
| Color | Blue |
| Operating Temperature Range, ?C | -20 to +140 |
| Operating Temperature Range, ?F | -4 to +284 |
| Base Oil Type | Mineral |
| ASTM D445 Base Oil Viscosity 40?C, mm?/s | 220 |
| Thickener Type | Lithium Complex |
| ASTM D2265 Dropping point, ?C | 260 |
| ASTM D2266 4 Ball wear, scar diameter, mm | 0.53 |
| ASTM D2596 4 Ball weld load, kg | 250 |
| ASTM D1743 Rust prevention | Pass |
| ASTM D4048 Copper corrosion | 1B |
The values shown are typical values and should not be used as quality control parameters to either accept or reject product.
Specifications are subject to change without notice.
